Features
1. Simple operation, support a variety of palletising recipes, foolproof operation, easy to learn and understand;.
2. Low energy consumption, low running cost.
3. Small footprint, flexible and can be moved at will.
4. Safe and convenient, no need for guardrail.

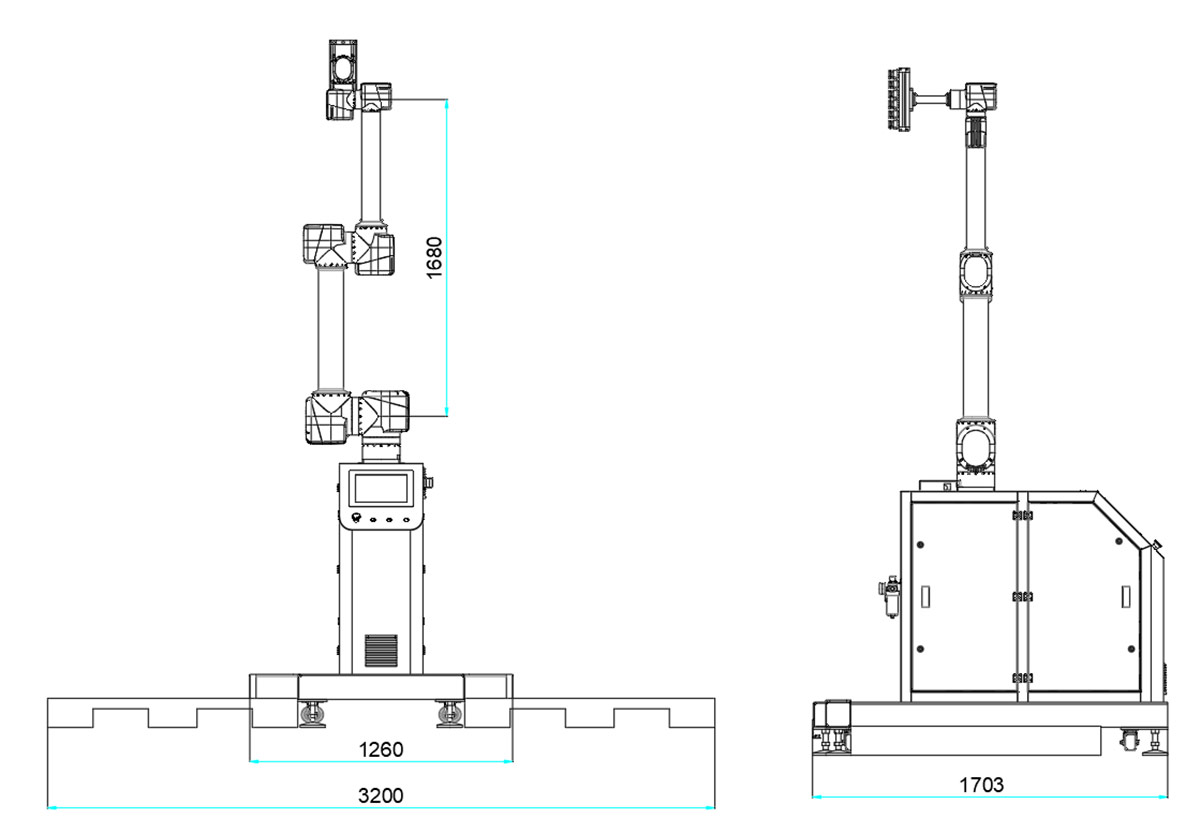

Machine size
Specification
|
Model |
WP-20 |
WP40L |
|
Maximum load |
30KG including suction device |
40KG |
|
Working radius |
1980mm |
|
|
Maximum palletising cycle time |
8-10times/min |
≦6PCS/min |
|
Maximum Palletising Height |
≦2500mm |
≦2650mm |
|
Repeat positioning accuracy |
±0.04mm |
|
|
Pallet placement method |
Manual, one left and one right |
|
|
Maximum compatible pallet |
L1200mm-W1200mm-H150mm |
1300mm*1200mm |
|
Max. power |
3KW |
3.5KW |
|
Reference air consumption |
240-460L/min |
|
|
Power supply requirements |
220V±10%，50Hz±5%， |
|
|
Air supply requirements |
0.5-0.7Mpa, gas consumption: 200L/minute (the buyer to prepare their own gas source) |
|
|
Communication methods |
EtherCAT interface, extended I/O |
|
|
IP grade |
IP54 |
|
|
Temperature range |
0-50°C |
|
|
Noise |
<80dB |
|
|
Main unit colour |
Silver grey |
|
|
Machine weight |
About 600kg |
About 650kg |
As China Collaborative Palletizing Robot Suppliers and OEM Collaborative Palletizing Robot Company , we provide economical solution for customers from product selection, cost budget, technical support, manufacturing, installation and commissioning, technical training and maintenance. We can also provide machines' videos and photos accordingly.
We will sincerely cooperate with all of our customers both at home and abroad!
