Tea Bag Packing Machine

Home / Product / Tea Bag Packing Machine / DXDPC-169 Inner and Outer Bag Packing Machine with Thread and Tag

DXDPC-169 Inner and Outer Bag Packing Machine with Thread and Tag

Features:
1.Stable bag length and accurate positioning.
2.Can finish the function of bag forming, filling, cutting, sealing, counting (can preset), finished product conveying.
3. With PID adjust temperature controller, so the temperature can be controlled more exactly.
4. Control whole operation with PLC, human-machine screen displaying, easy to operate.
5. All parts which touch packing materials are made of SUS304 stainless steel, make sure the health packing products.
6. Some working cylinder are original imported, make sure the machine can work accurately and steady.
7. Additional unit of this machine can finish the work of cutting, printing date and making easy tearing notches.
Application:

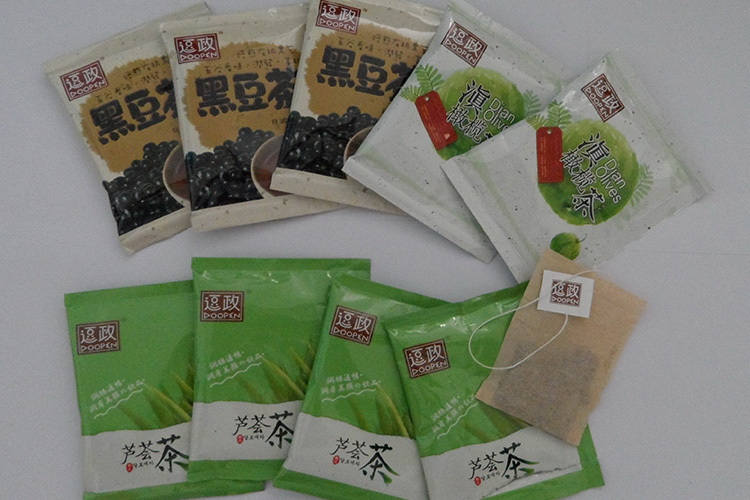

This machine is suit for the disposable packing of small particulate products, such as tea, herb tea, health tea, coffee etc.
contact us

Product Details

Specification:

Model

DXDPC-169

Packing Type

inner and outer bag with thread and tag

Inner Bag Size

W:50-80mm    L:50-70mm

Outer Bag Size

 W:70-90mm    L:80-120mm

Measuring Range

3-15ml (1-5g)

Speed

30-60 bag/min

Voltage

220V/50HZ

Power

3.8KW

Weight

500KG

Dimension (L*W*H)

850*600*1880mm
